Colibri AIC

Two analog 0-20mA current inputs

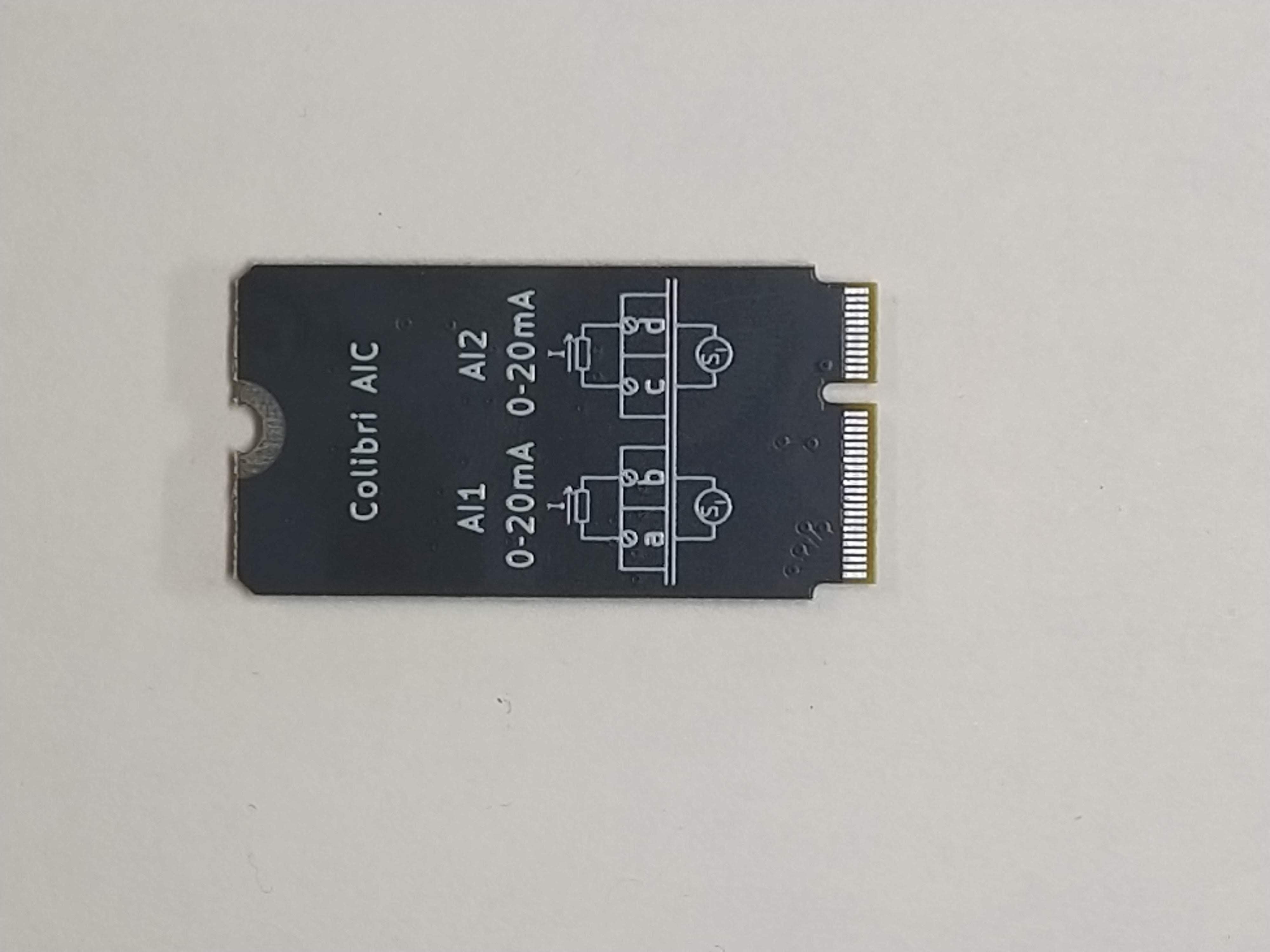

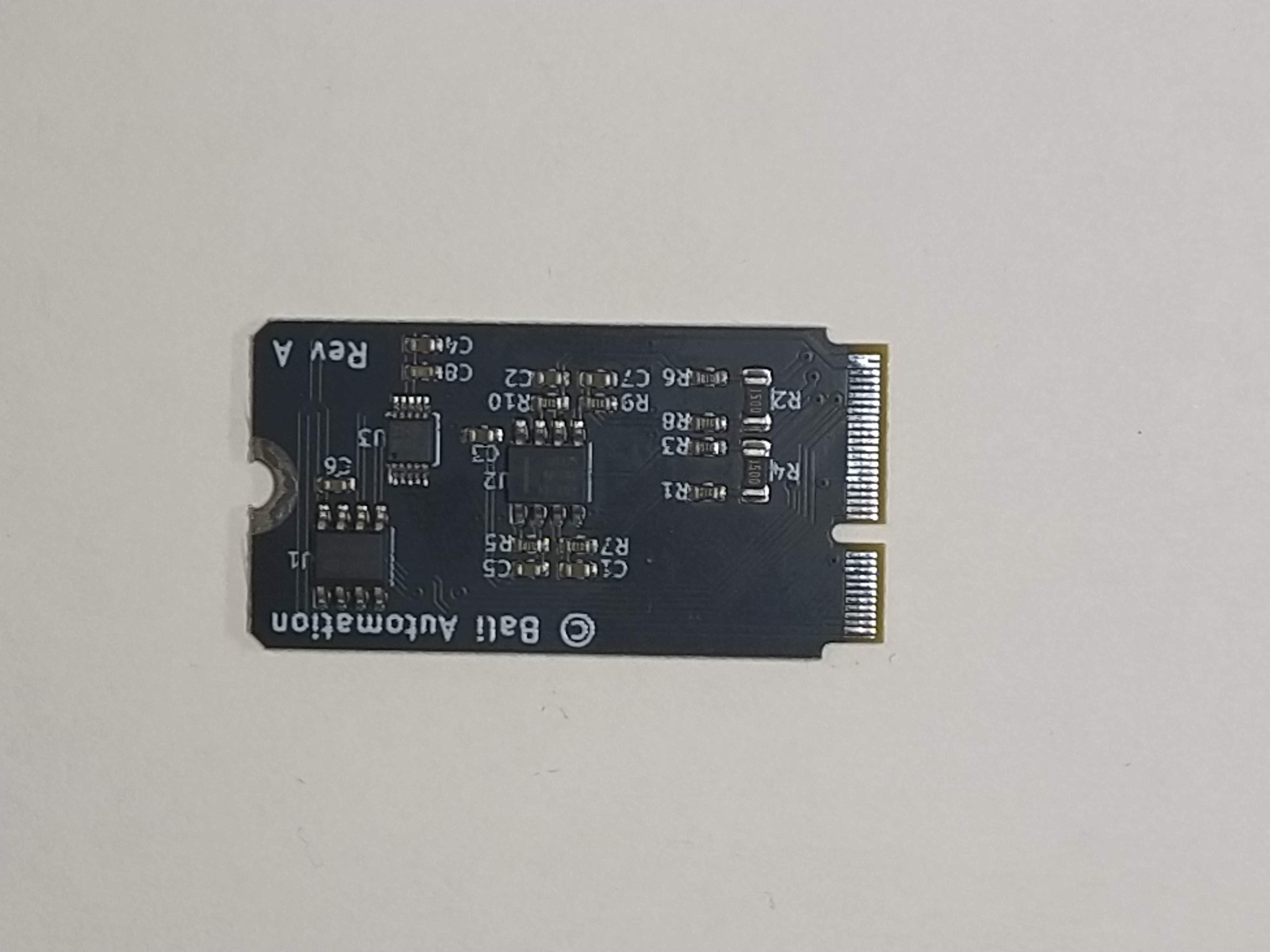

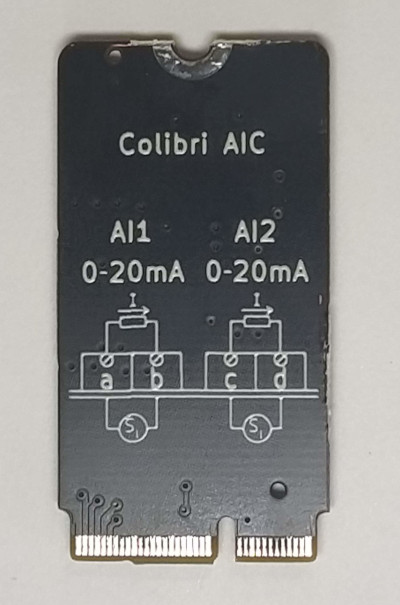

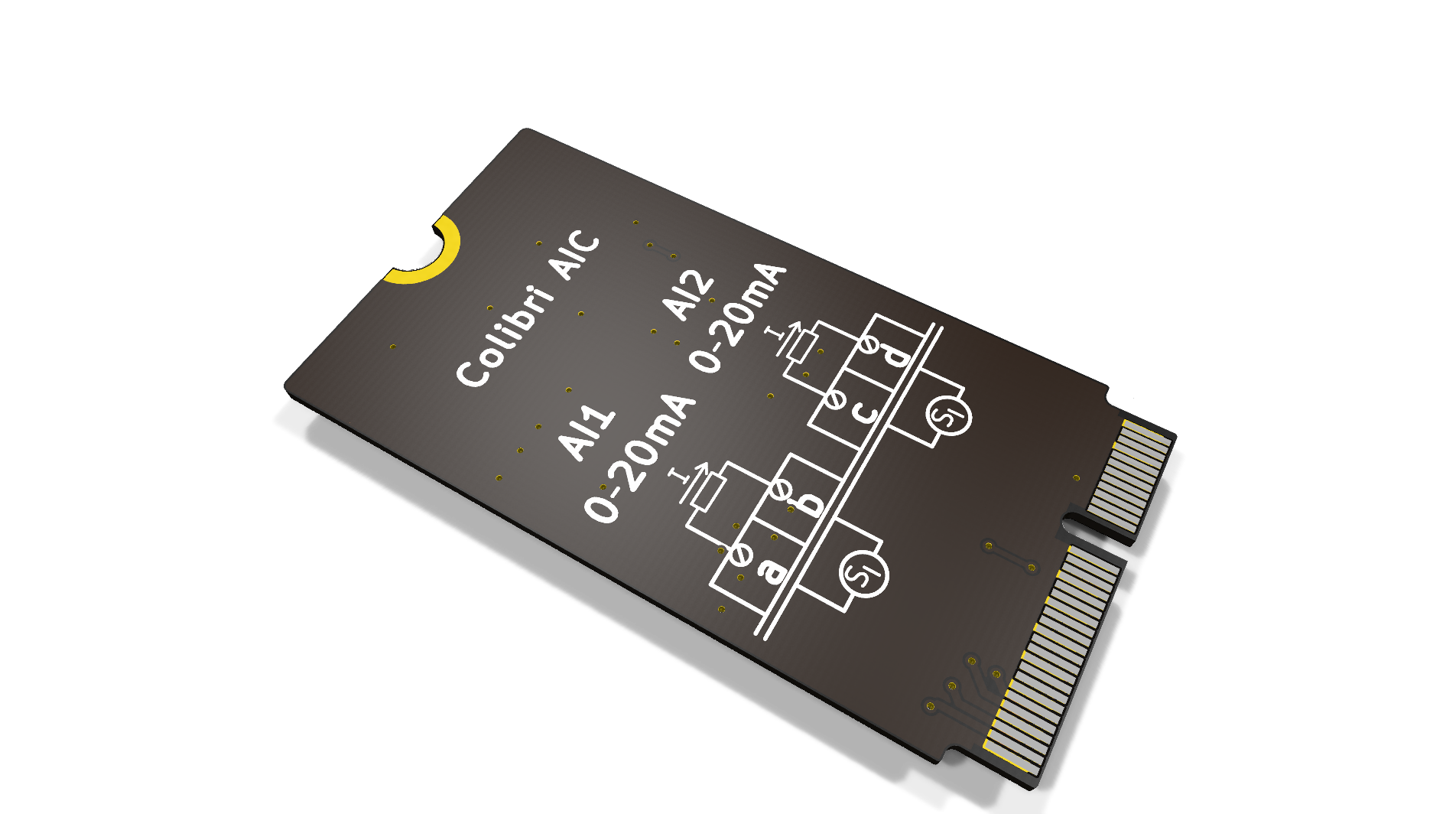

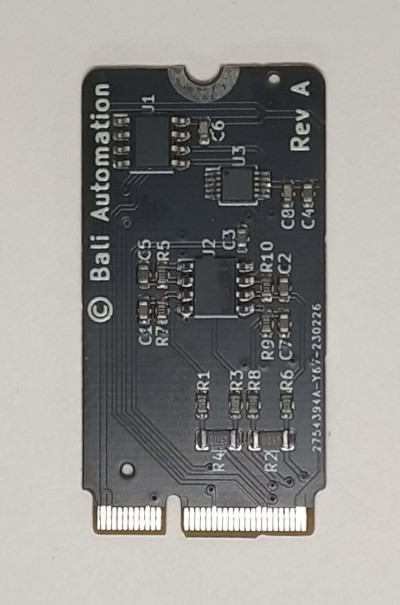

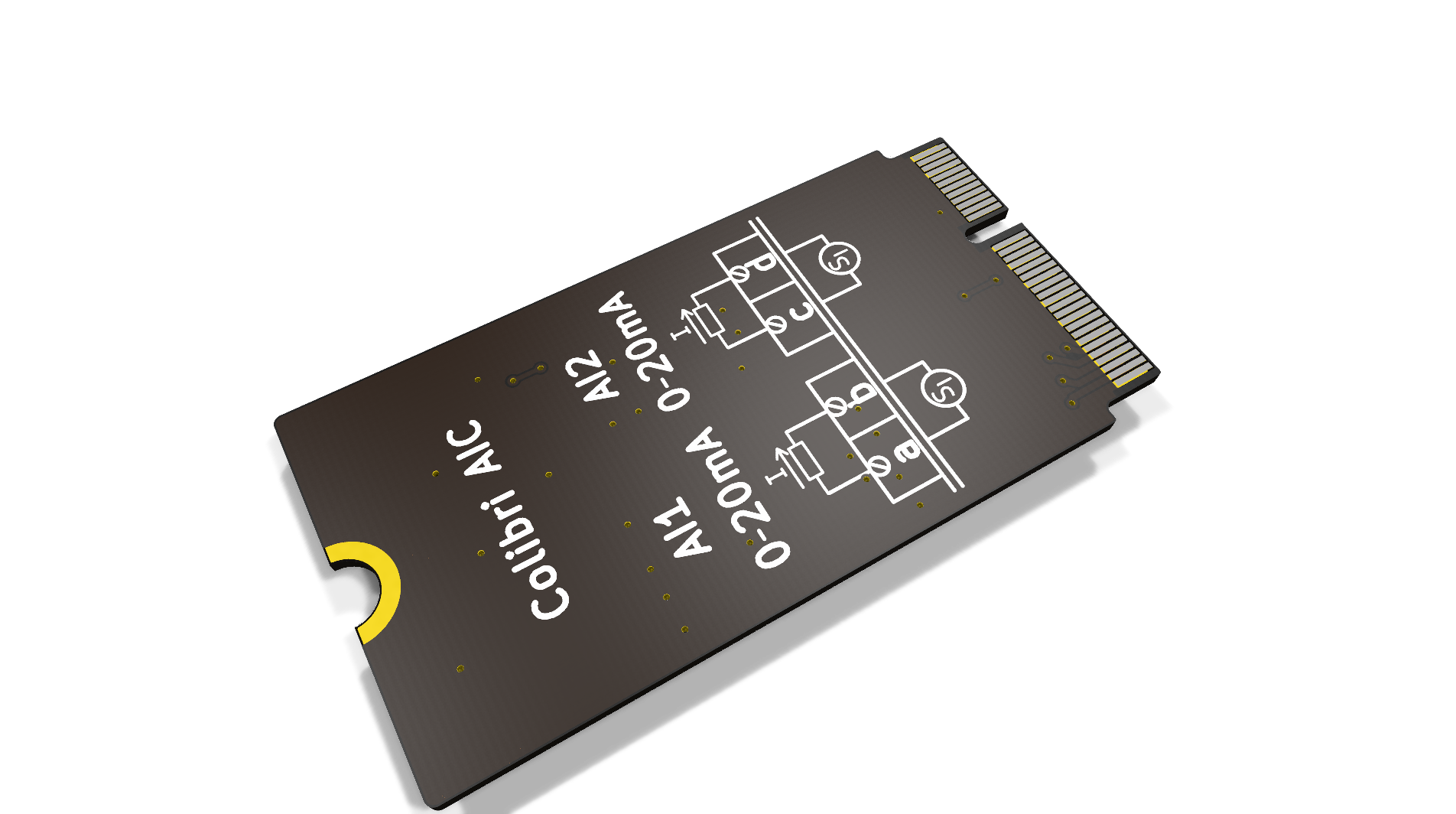

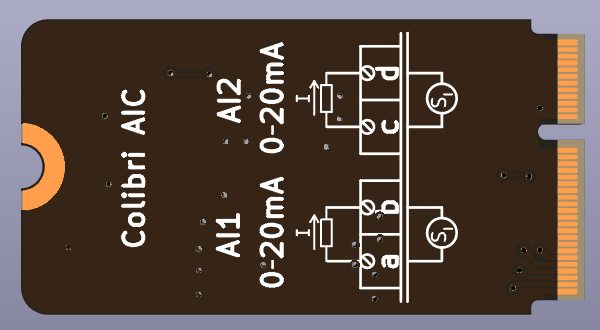

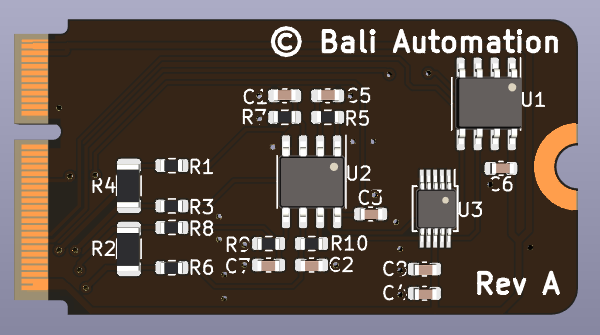

Product Images

1 / 6

Overview

Colibri AIC is an expansion module with two Analog 0-20mA inputs. It uses the ADS1115 16-bit A/D converter with a maximum sampling rate, making it ideal for industrial current loop sensors and 4-20mA signal monitoring.

Key Features

✓2x analog current inputs (0-20mA)
✓ADS1115 16-bit ADC
✓High precision measurements
✓Industrial current loop compatible
✓I2C communication interface
✓Screw terminal connections

Technical Specifications

Input Type

0-20mA current

Channels

ADC

ADS1115 (16-bit)

Interface

I2C

I2C Address

0x48 (ADS1115), 0x50-0x57 (24LC16)

Resources & Downloads

💻 GitHub Repository

Access hardware designs, schematics, PCB files, and firmware

View on GitHub →

📚 Documentation

Detailed documentation and usage guides

View Documentation →
