Colibri FET
Four current sink outputs
Colibri FET
Total:$23.00
Product Images
1 / 4
Overview

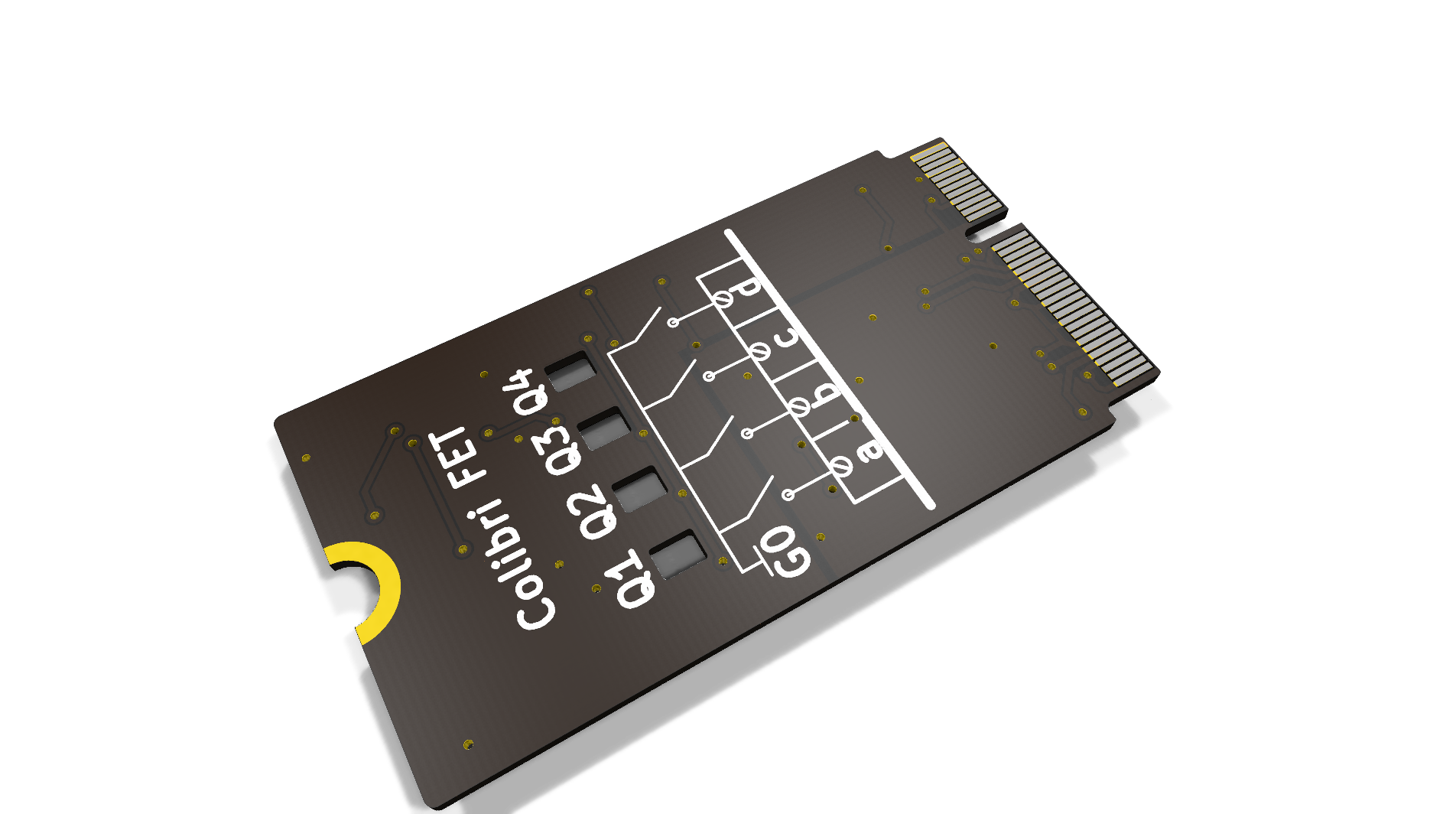

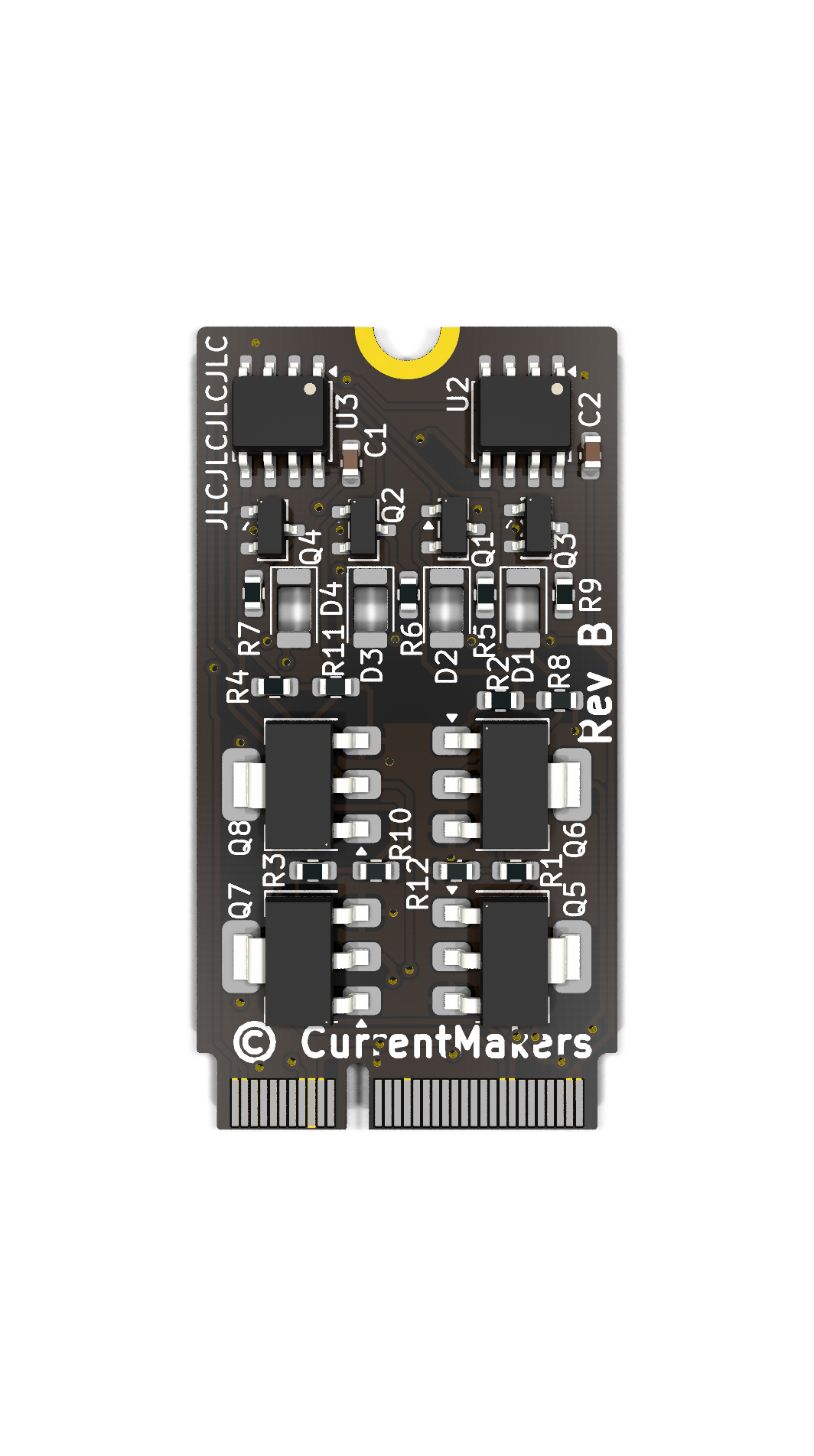

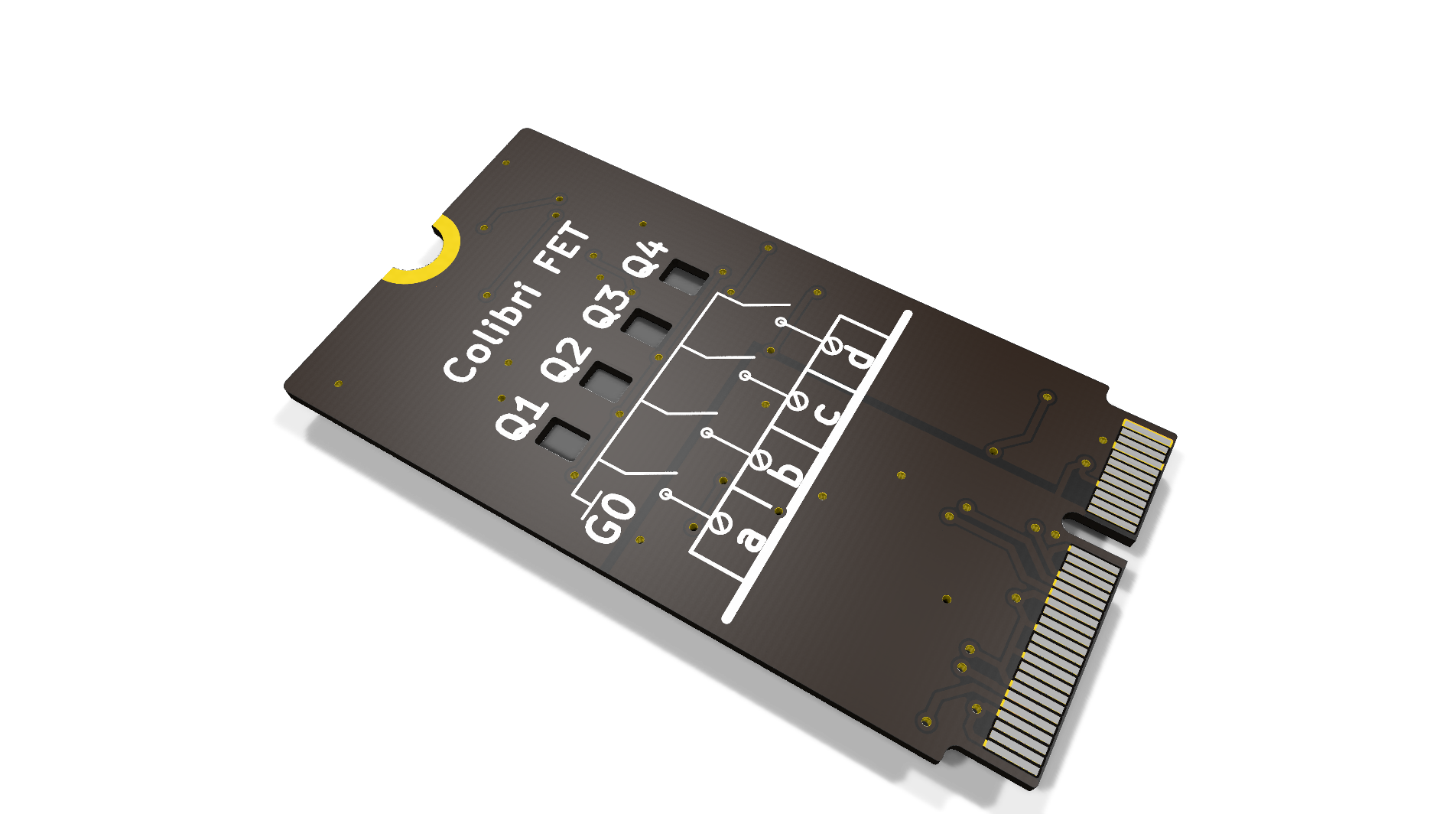

Colibri FET is an expansion module with four FETs that sinks up to 1Amp current. There is no isolation between the outputs and the Colibri internals.
Key Features
- ✓4x FET outputs
- ✓1Amp maximum current
- ✓60V maximum voltage
- ✓Fast switching response
- ✓I2C communication interface
Technical Specifications
Output Type
N-channel MOSFET
Channels
4
Max Current
1 A
Max Voltage
60 V
Interface
I2C
I2C Address
0x50-0x57 (24LC16), 0x41 (PCA9536)
Size
42mm x 22mm
Weight (grams)
2
