Colibri PID1

One Pt1000 input and one 0-10V analog output with on-board MCU

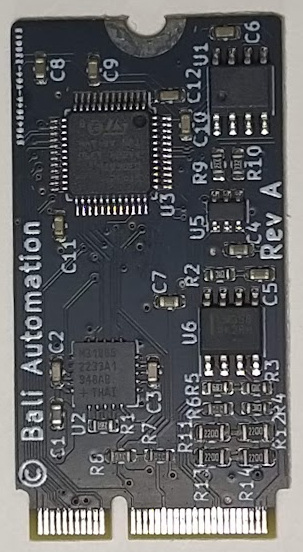

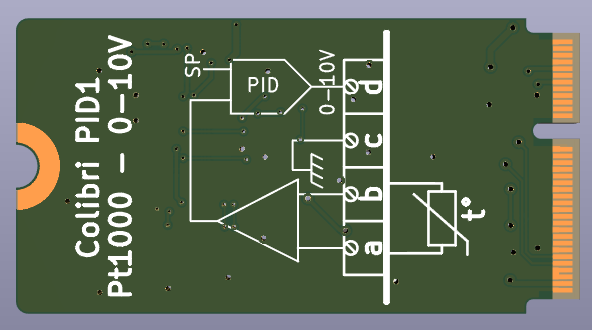

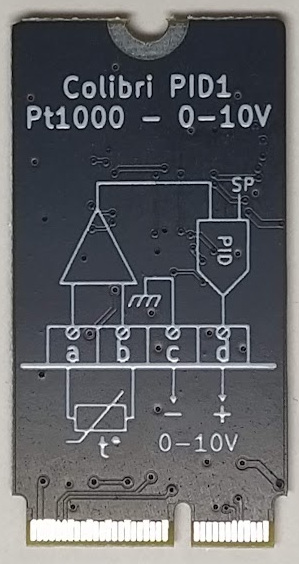

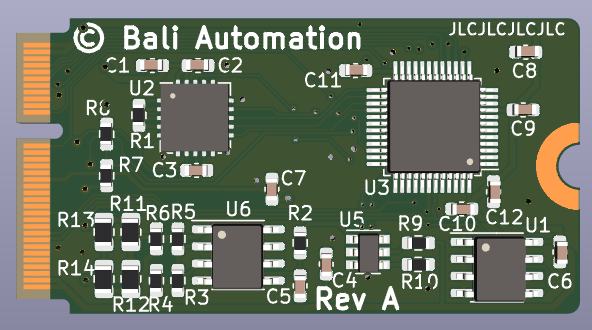

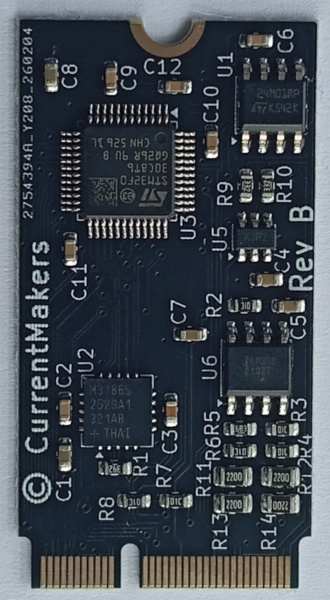

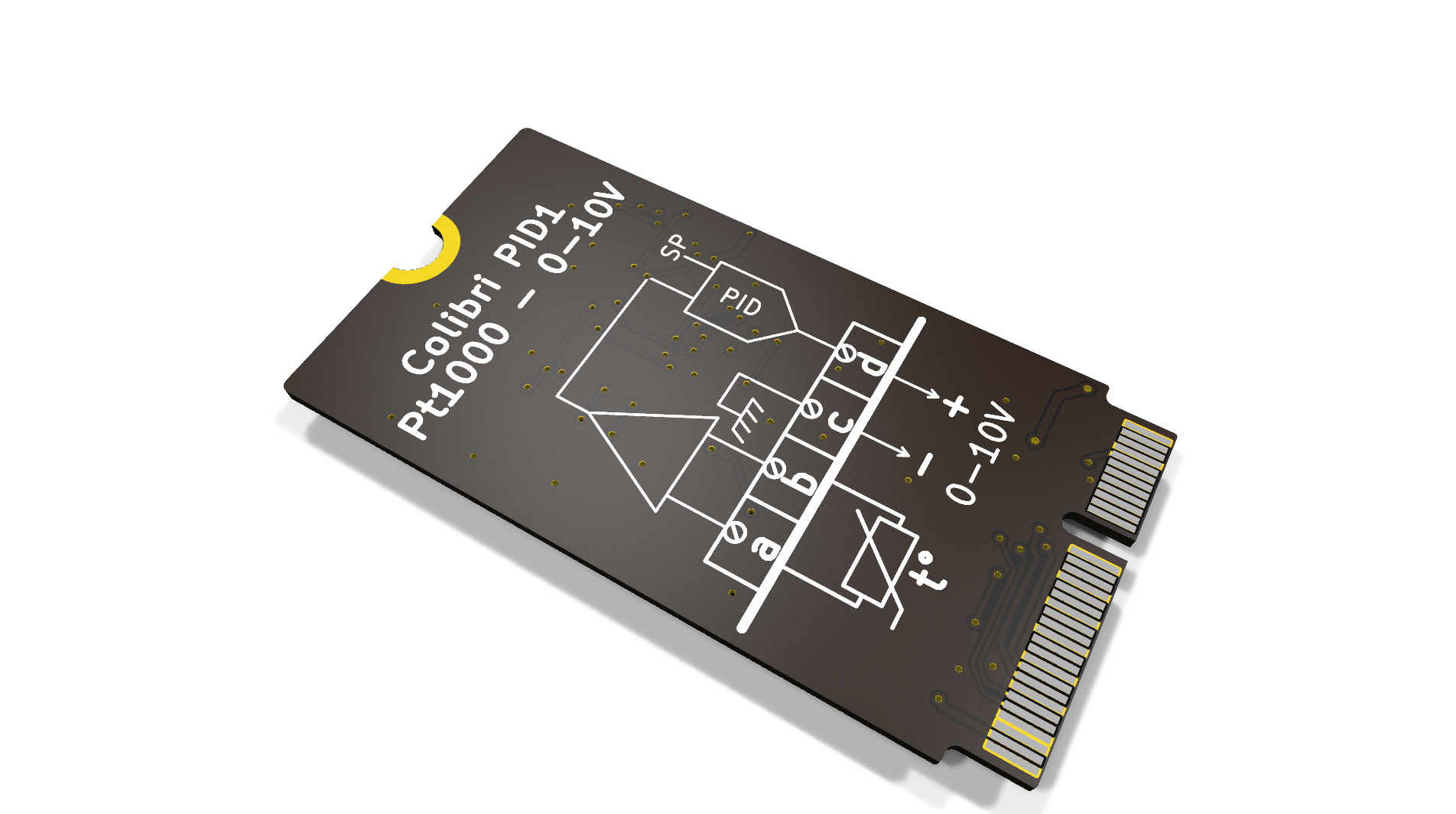

Product Images

1 / 4

Overview

Colibri PID1 is an expansion module with one Pt1000 temperature sensor input and one Analog 0-10V output, featuring an on-board STM32F030 processor for PID control applications.

Key Features

✓1x Pt1000 temperature input
✓1x 0-10V analog output
✓On-board STM32F030 MCU
✓PID control capability
✓I2C communication interface
✓Ideal for temperature control loops

Technical Specifications

Temperature Input

1x Pt1000 RTD

Analog Output

1x 0-10V

MCU

STM32F030

Interface

I2C

Resources & Downloads

💻 GitHub Repository

Access hardware designs, schematics, PCB files, and firmware

View on GitHub →

📚 Documentation

Detailed documentation and usage guides

View Documentation →
