Colibri Pt1000

Two Pt1000 temperature sensor inputs

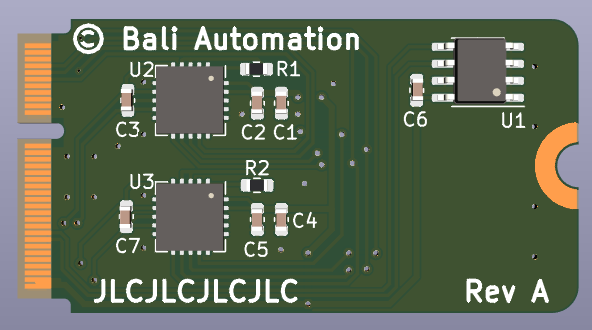

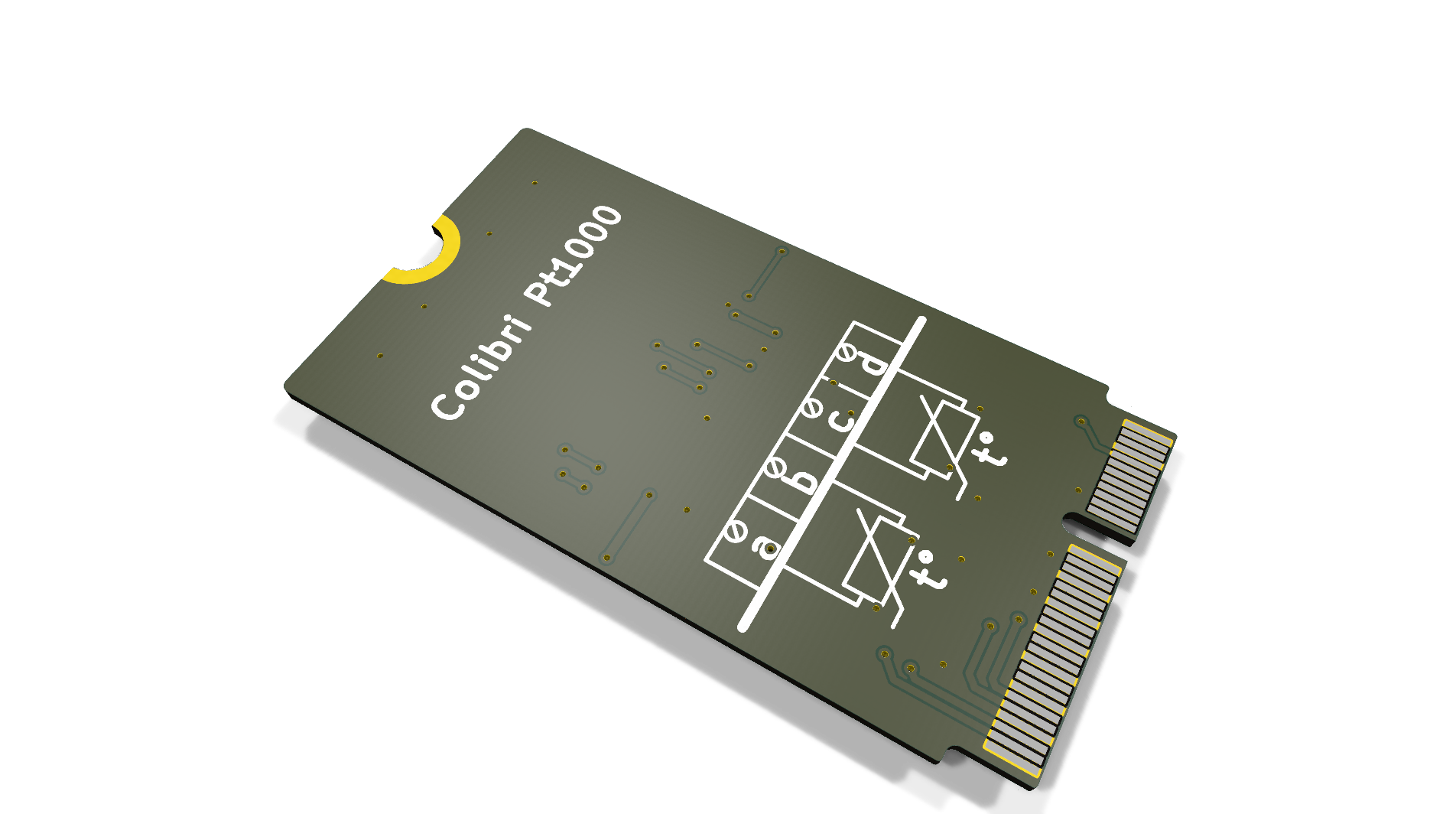

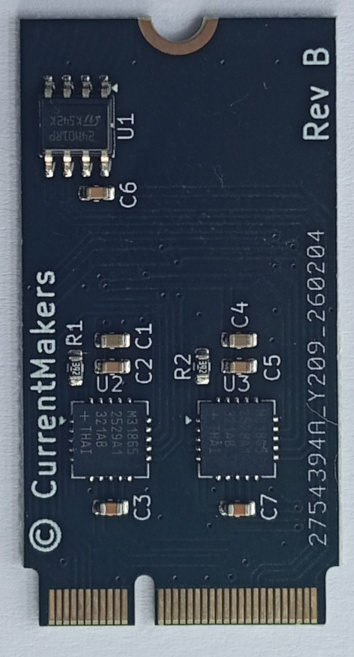

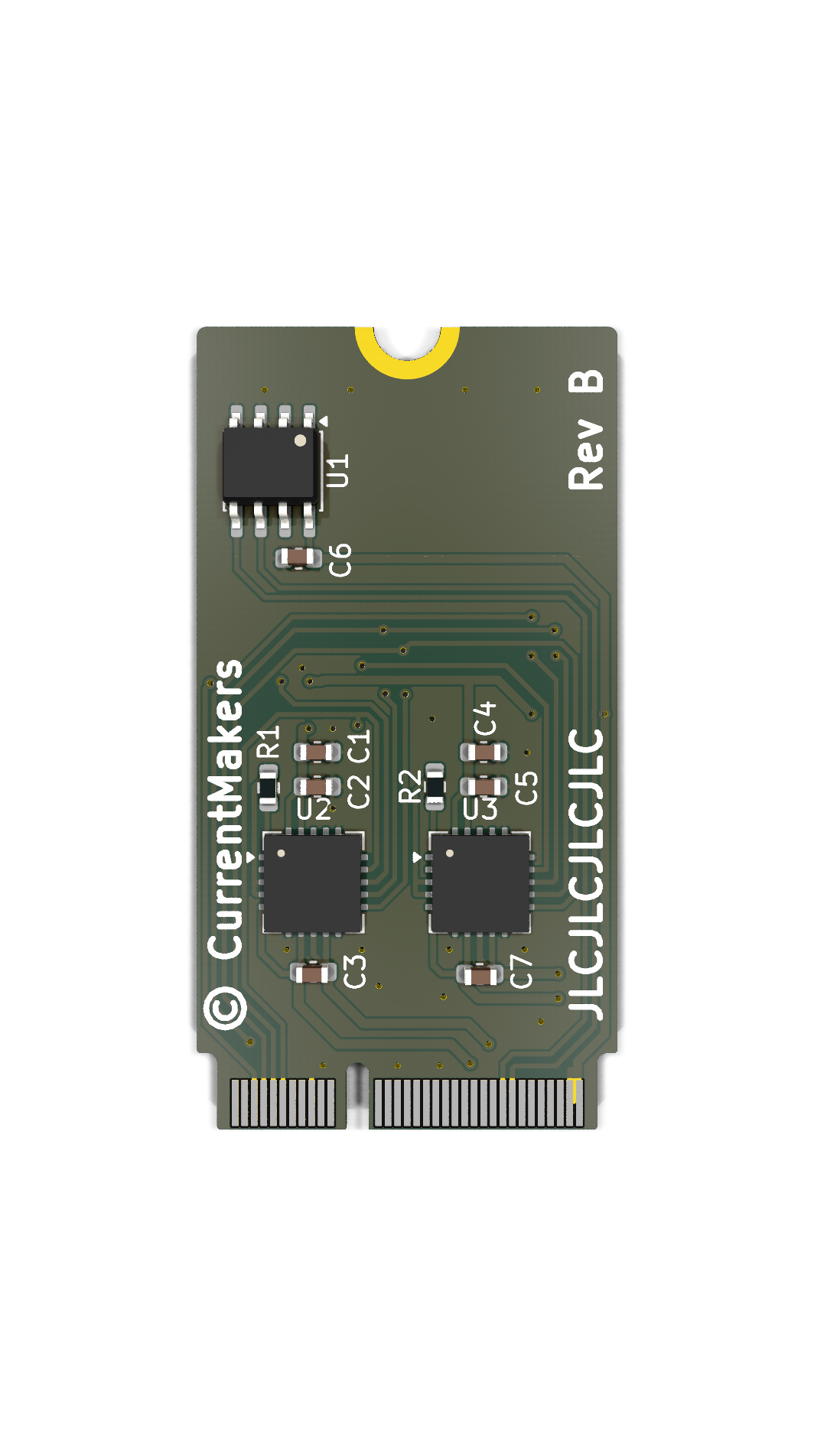

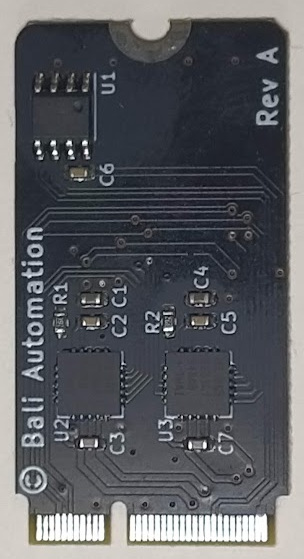

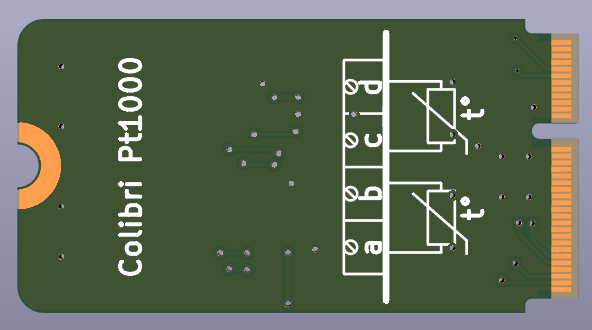

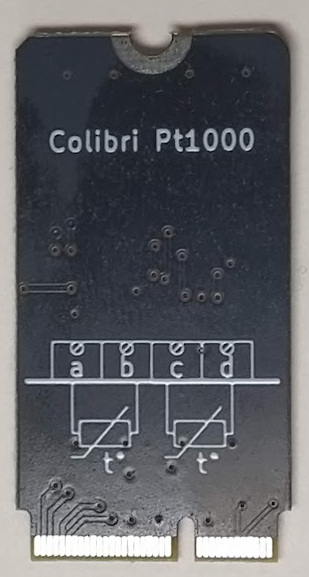

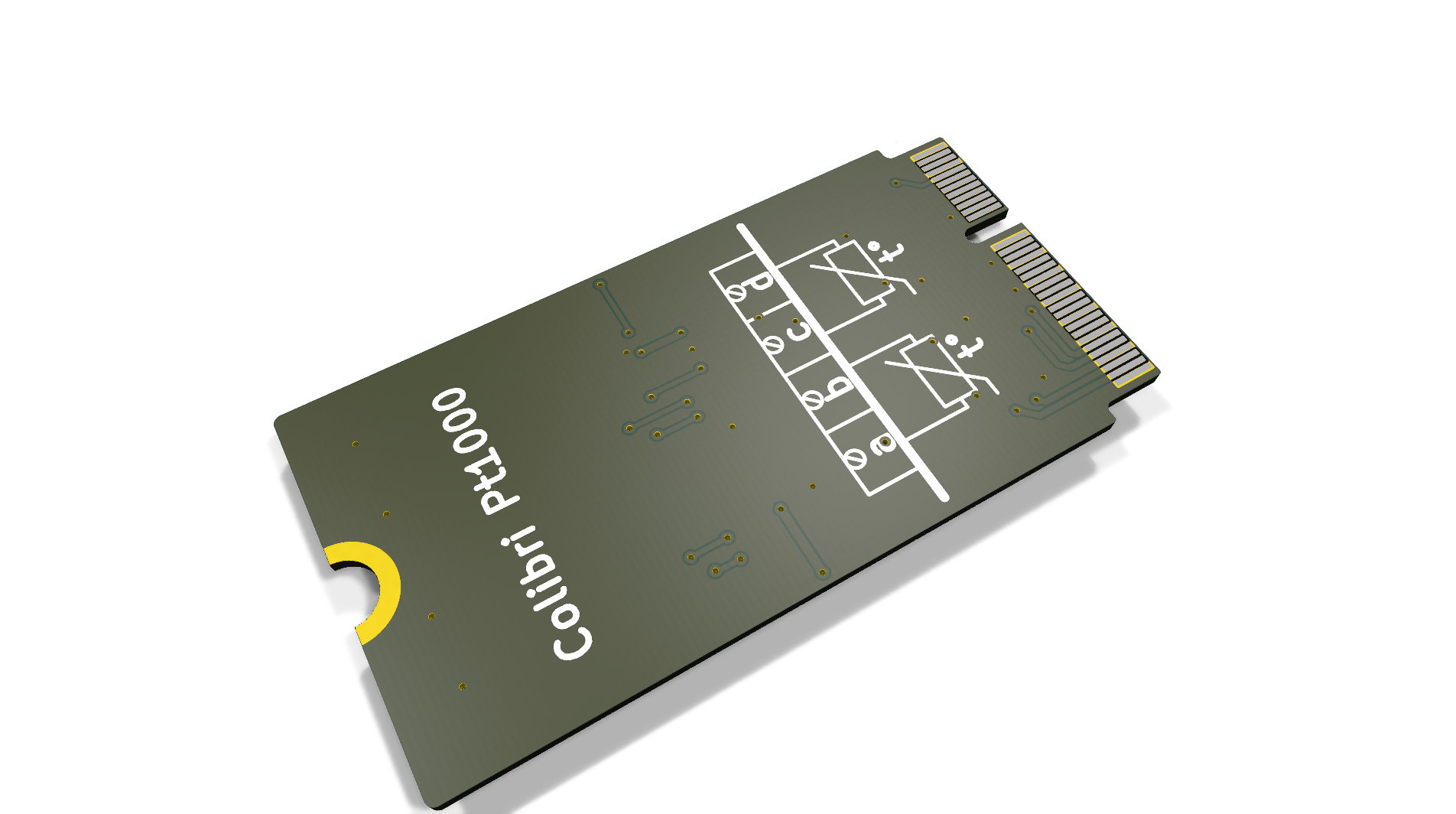

Product Images

1 / 4

Overview

Colibri Pt1000 is an expansion module with two Pt1000 temperature sensor inputs. It uses the MAX31865 resistor Wheatstone bridge A/D converter for high-precision temperature measurements.

Key Features

✓2x Pt1000 temperature inputs
✓MAX31865 RTD-to-Digital converter
✓High-precision temperature measurement
✓Industrial temperature sensing
✓I2C communication interface
✓Screw terminal connections

Technical Specifications

Sensor Type

Pt1000 RTD

Channels

Converter

MAX31865

Interface

I2C

I2C Address

0x50-0x57 (24LC16)

Resources & Downloads

💻 GitHub Repository

Access hardware designs, schematics, PCB files, and firmware

View on GitHub →

📚 Documentation

Detailed documentation and usage guides

View Documentation →
