Colibri SSR

Two solid state relay outputs

Product Images

1 / 4

Overview

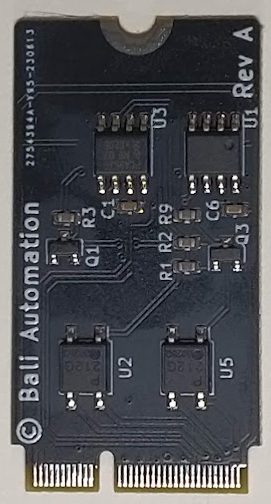

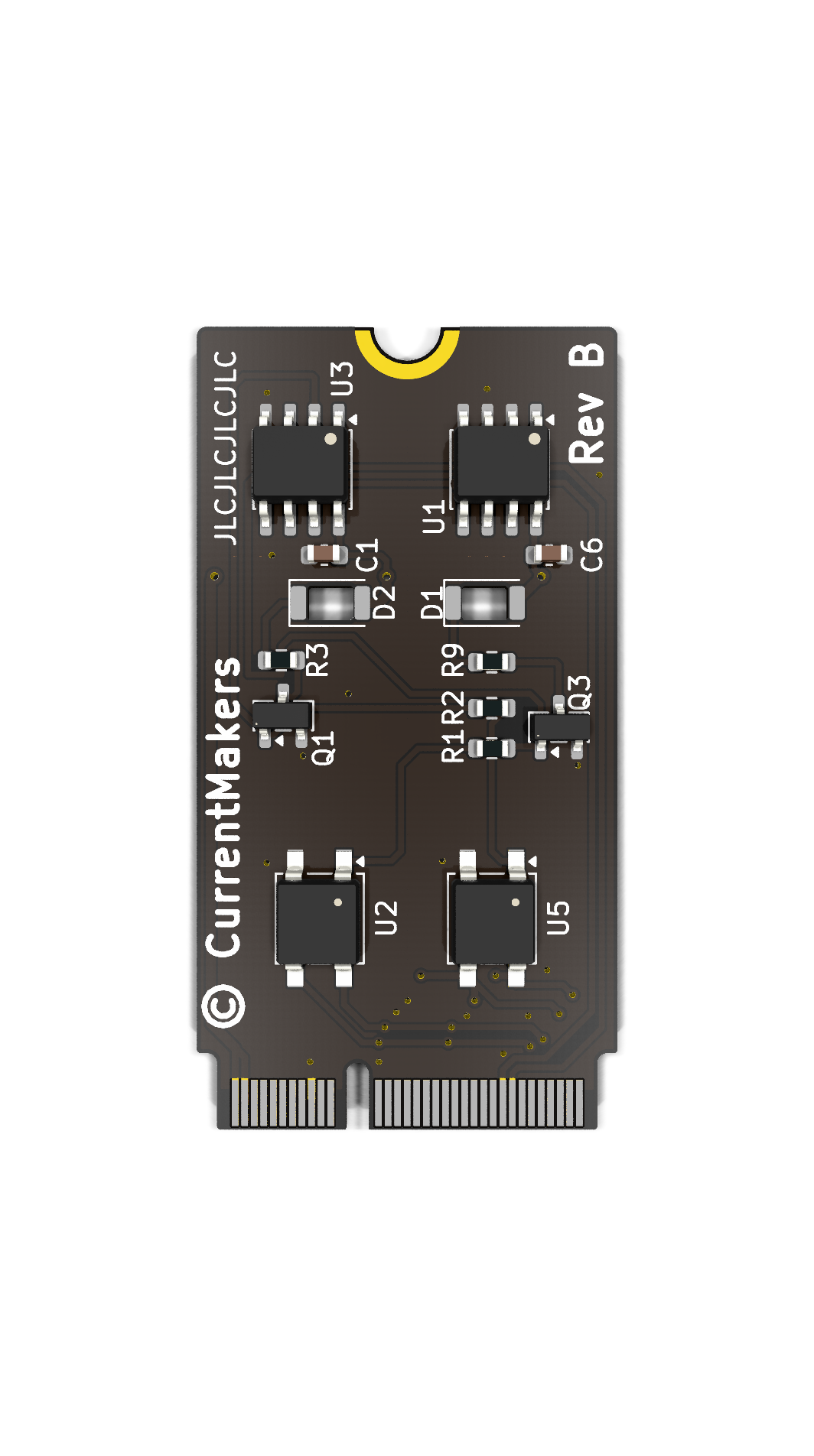

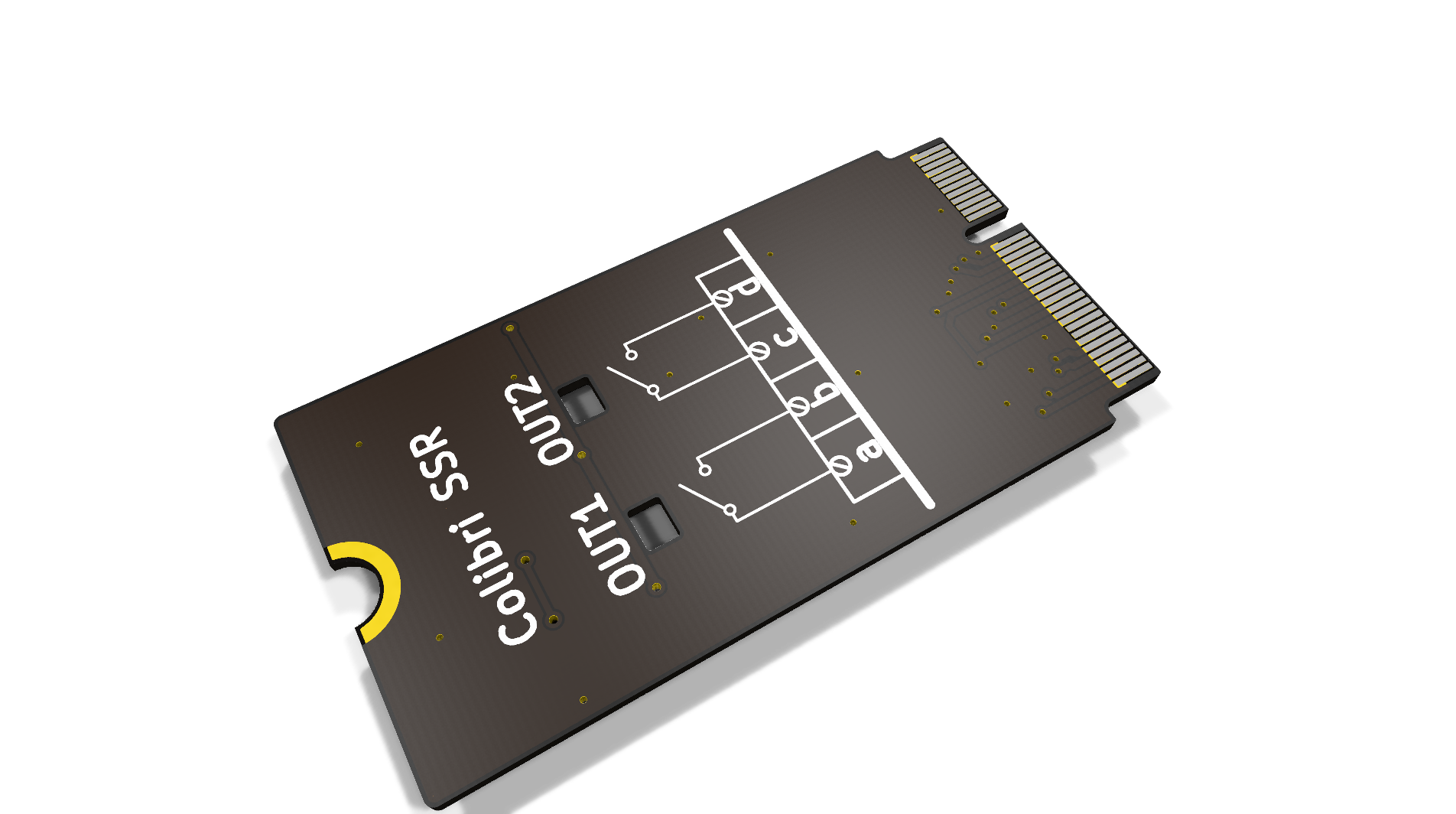

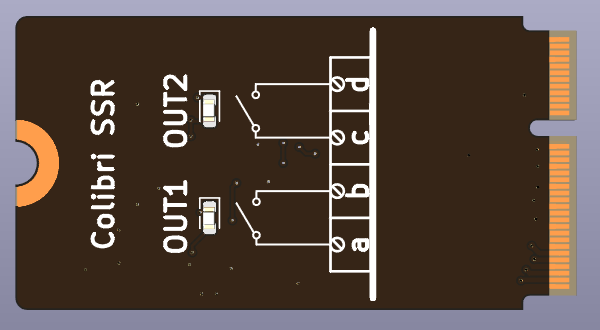

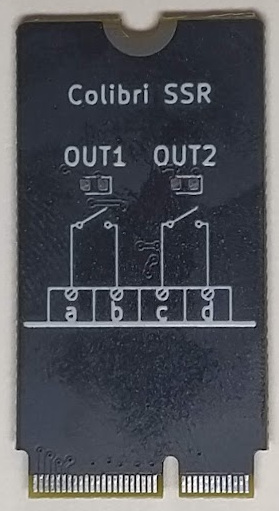

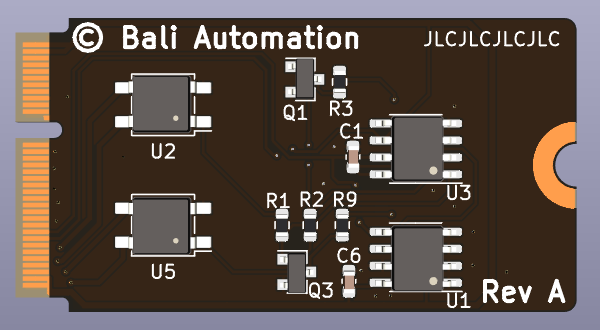

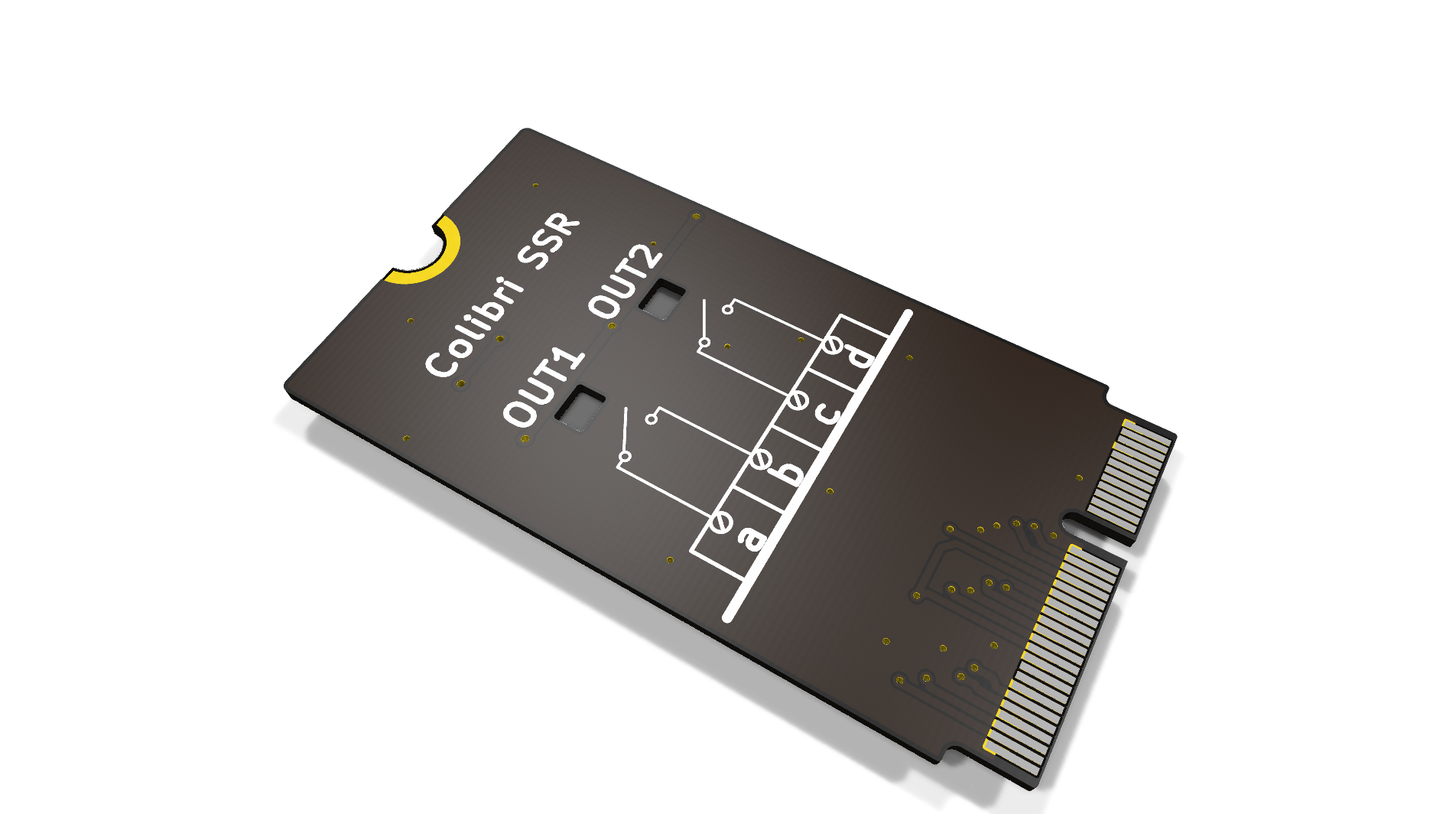

Colibri SSR is an expansion module with two solid state relay outputs (max 80mA, 60V). Perfect for switching low-power DC loads with fast response times and no mechanical wear.

Key Features

✓2x solid state relay outputs
✓80mA maximum current
✓60V maximum voltage
✓Fast switching response
✓No mechanical wear
✓I2C communication interface

Technical Specifications

Output Type

Solid State Relay

Channels

Max Current

80mA

Max Voltage

60V

Interface

I2C

I2C Address

0x50-0x57 (24LC16), 0x41 (PCA9536)

Resources & Downloads

💻 GitHub Repository

Access hardware designs, schematics, PCB files, and firmware

View on GitHub →

📚 Documentation

Detailed documentation and usage guides

View Documentation →
