CARRIER
Colibri 3a
3-slot carrier board with MCU slot and expansion capabilities
Colibri 3a
Total:$66.00
Product Images
1 / 4
Overview

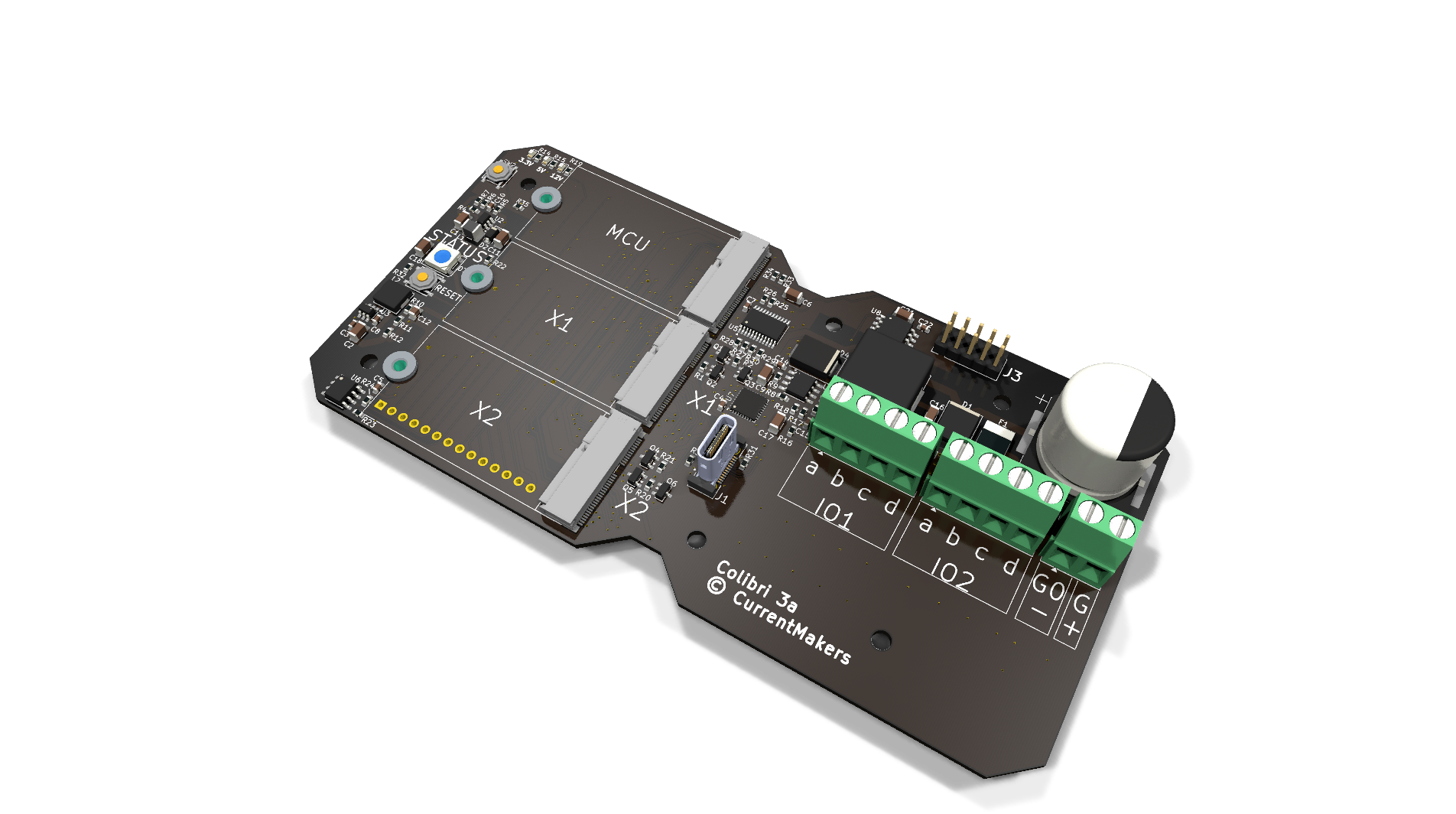

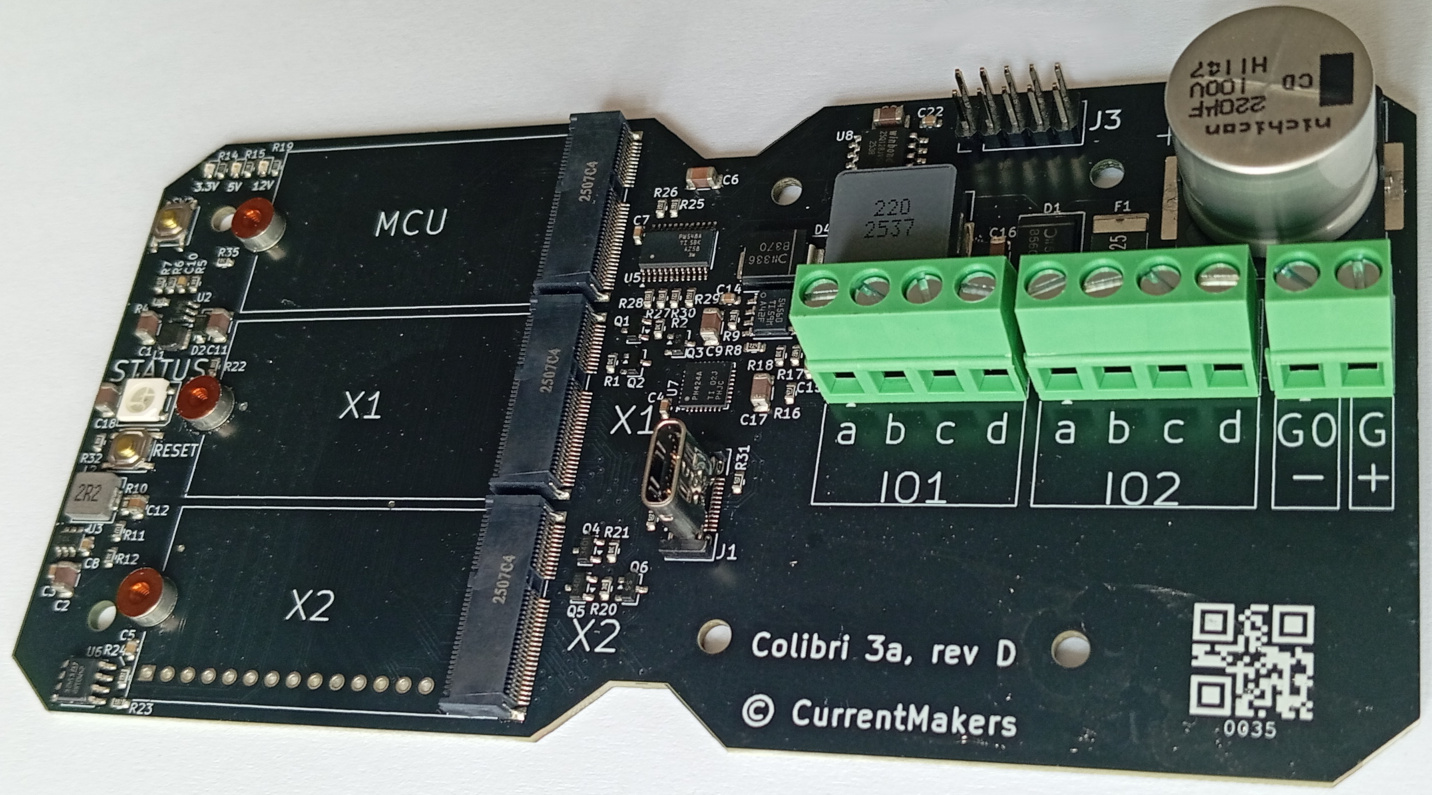

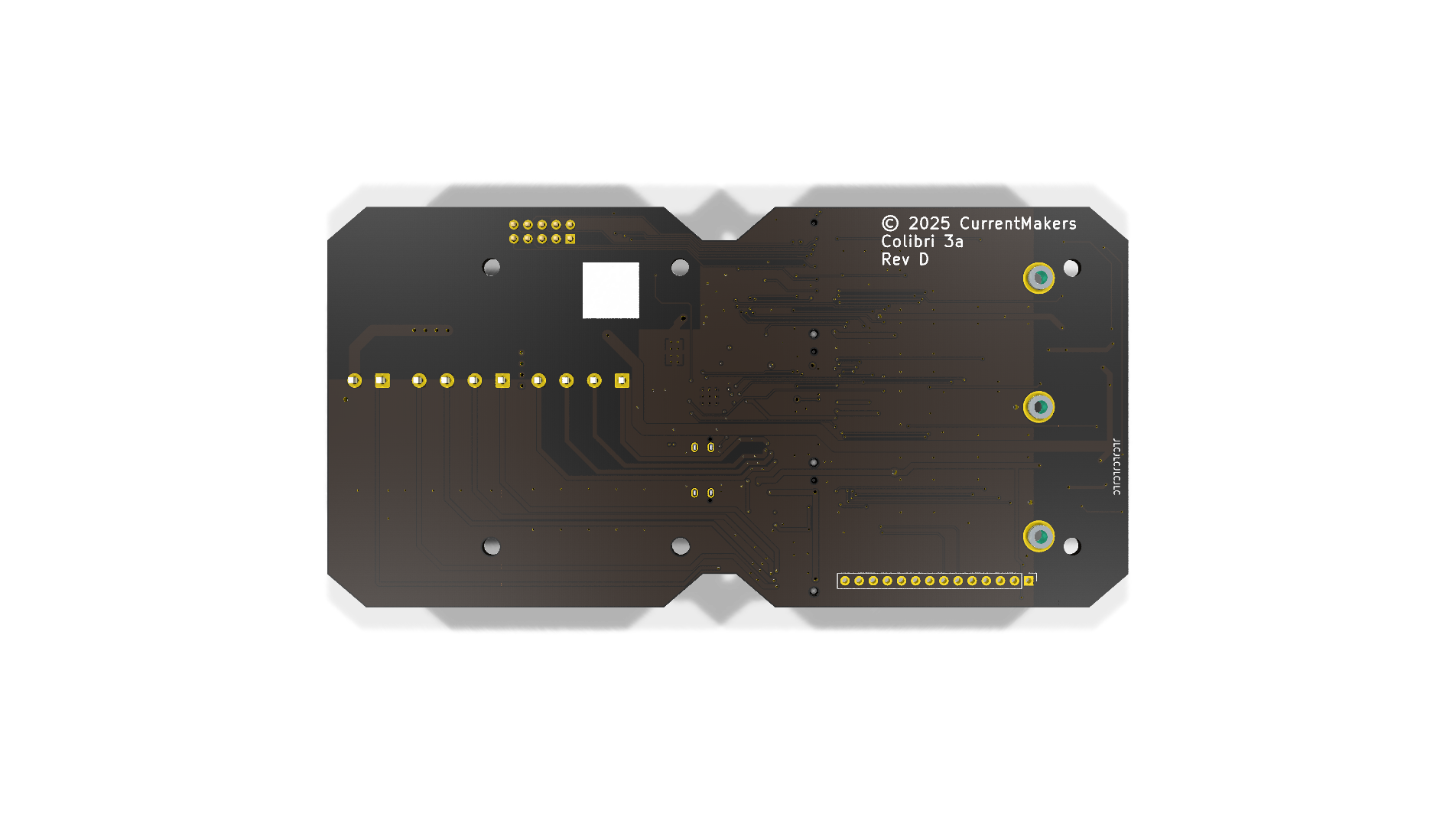

Colibri 3a is a 3 slot carrier board, designed for Colibri MCU1, but equally suited for other MCU boards. The MCU slot is made for any Colibri MCU variant. The USB-C connector is intended to be used for upstream systems, such as a PLC, DCS or SCADA
Key Features
- ✓USB-C port for upstream communication with PC or other devices.
- ✓1 dedicated MCU slot
- ✓2 expansion slots for I/O modules
- ✓I2C and SPI communication per slot
- ✓Individually controllable +3.3V, +5V, +12V power per slot
- ✓AC (5-36V) or DC (7-55V) power input
- ✓External power supply available for expansion boards
- ✓Jolt Connect programming header.
Technical Specifications
MCU Slots
1
Expansion Slots
2
Communication
I2C, SPI
Power Input
AC: 7-36V, DC: 6-55V
Slot Power
+3.3V & +5V (individually controlled), +12V (always-on)
PCB Size
144 x 72 mm
Enclosure Size
220 x 120 x 75 mm
Weight (grams)
200
