PROGRAMMER
Jolt Connect

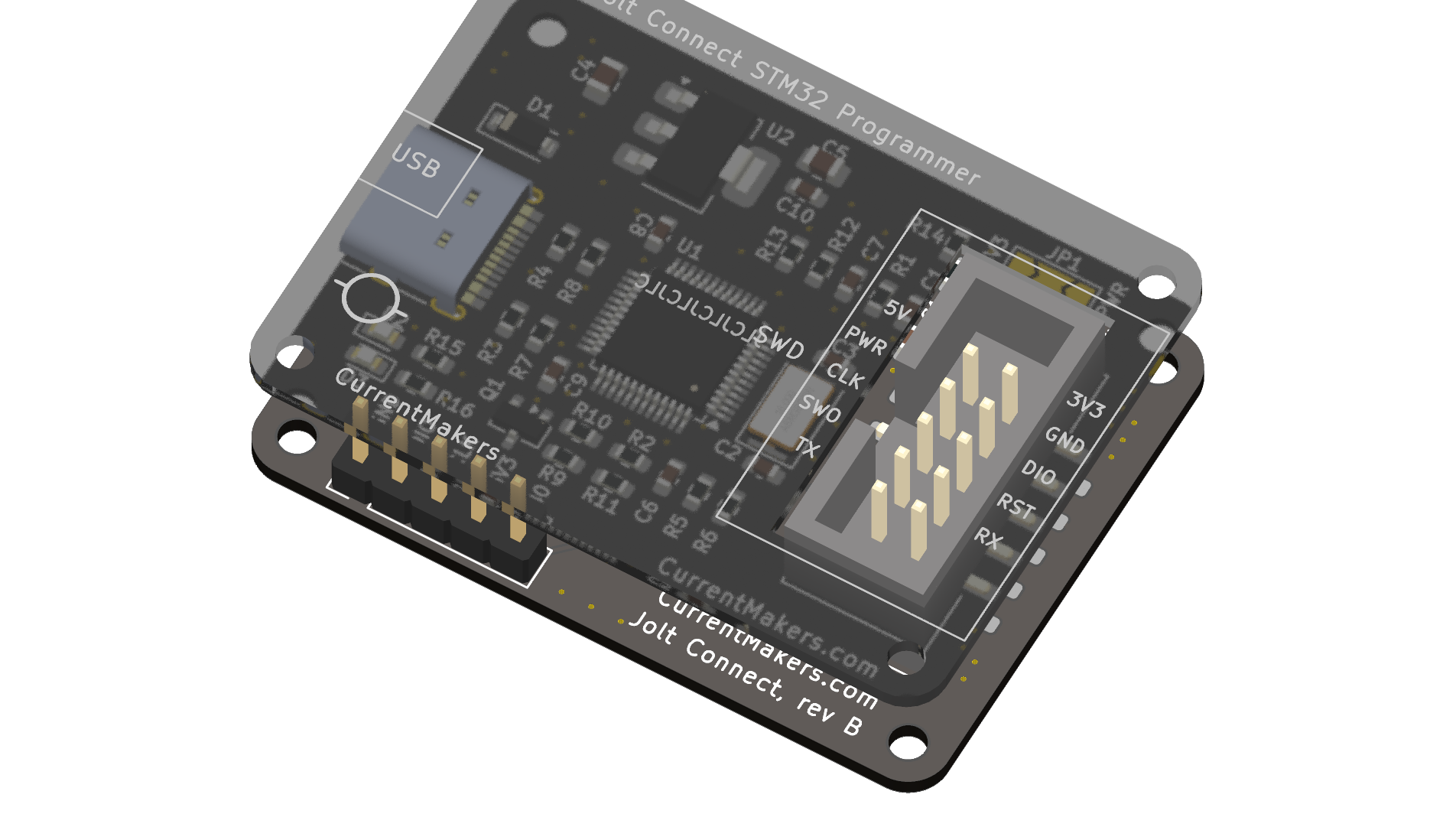

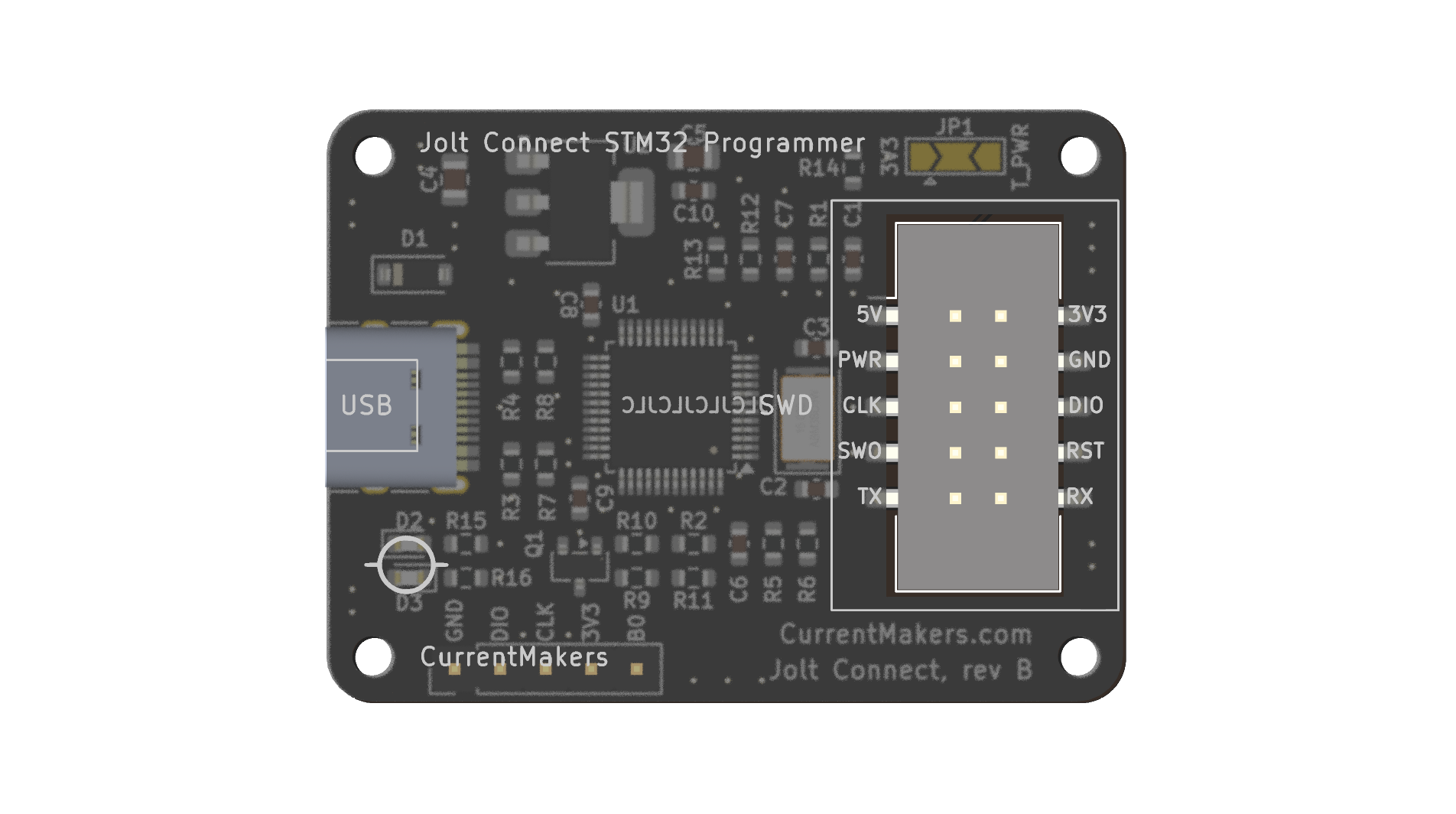

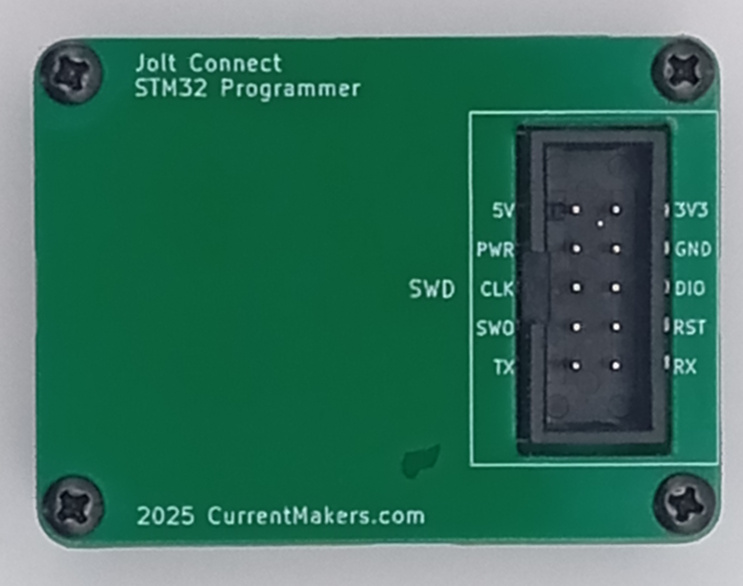

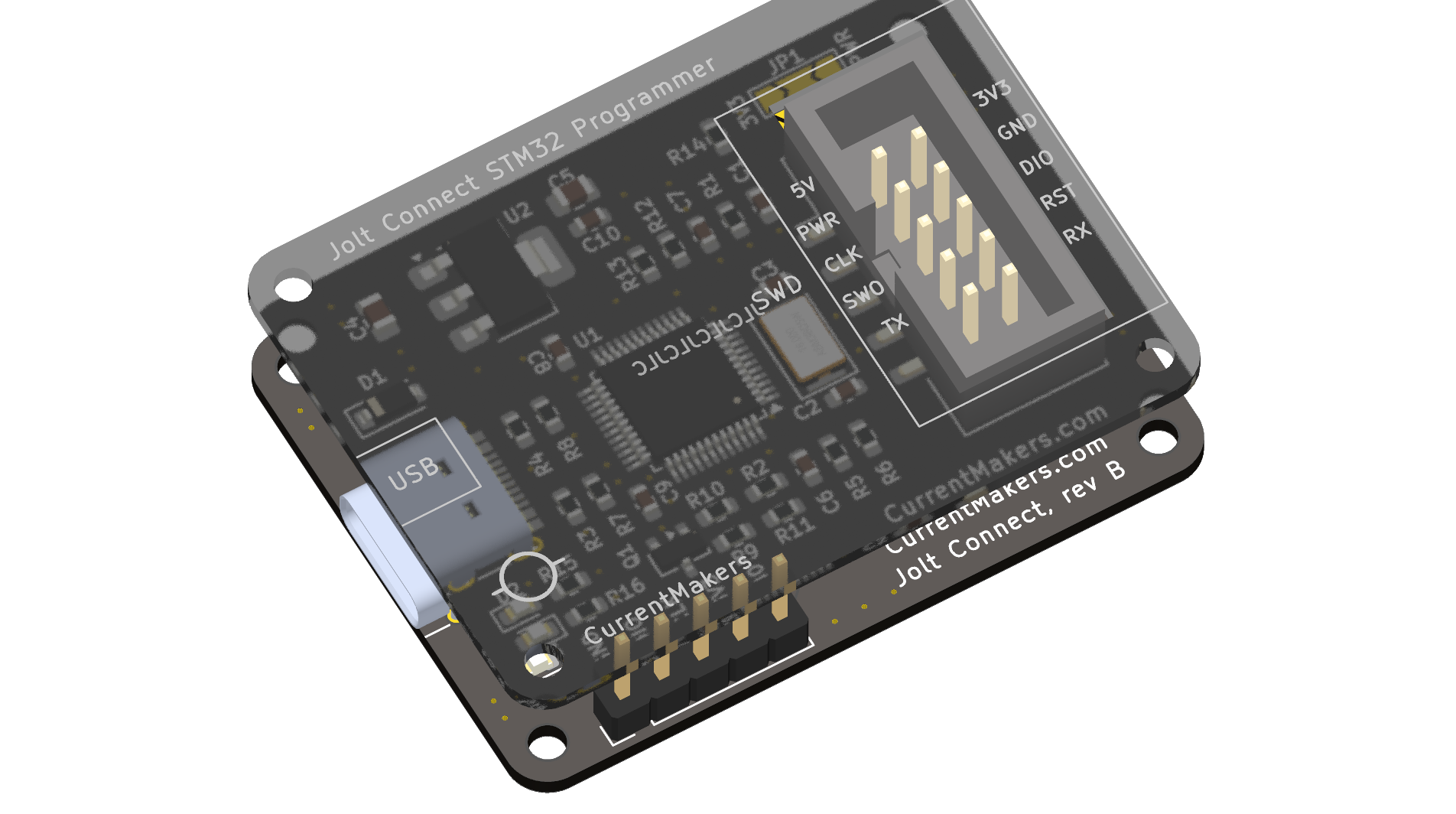

Programmer board with USB-C for power and SWD interface.
Jolt Connect
Total:$19.00
Product Images
1 / 3
Overview
The Jolt Connect is used for programming, debugging and general serial interface with STM32 systems and other ARM-based MCUs that has the SWD interface.
Key Features
- ✓USB-C port for power supply and SWD+UART communications.
- ✓On-board STM32F103 microcontroller.
- ✓DAPlink, BlackMagic and ST-Link/V2 compatible
Technical Specifications
DAPlink Probe
Yes
BlackMagic Probe
Yes
ST-Link/V2 Probe
Optional
Size
70 x 52 mm
Weight (grams)
13
Resources & Downloads
Interested in Jolt Connect?
Contact us for more information, pricing, or custom configurations
Contact Us
