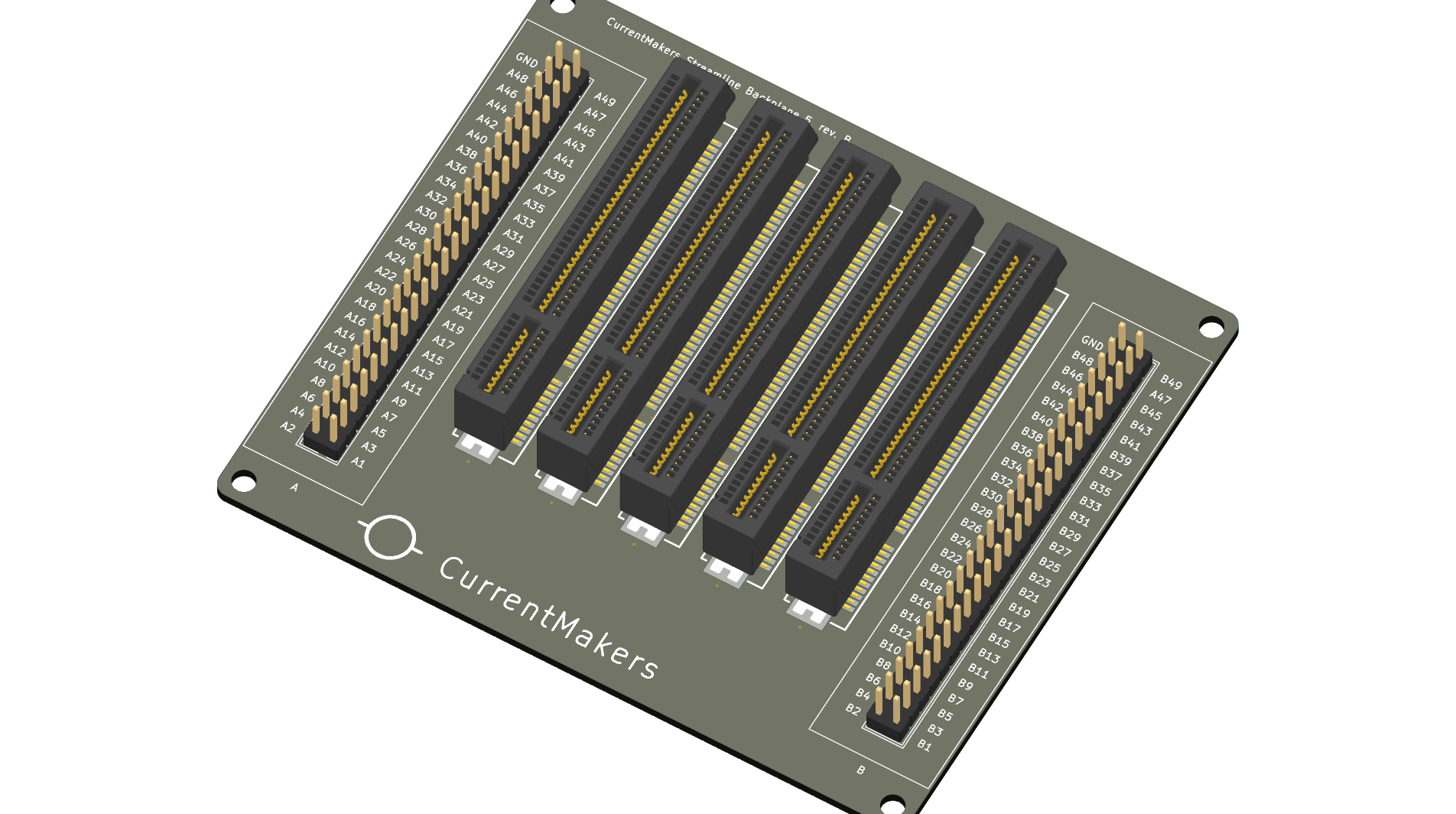

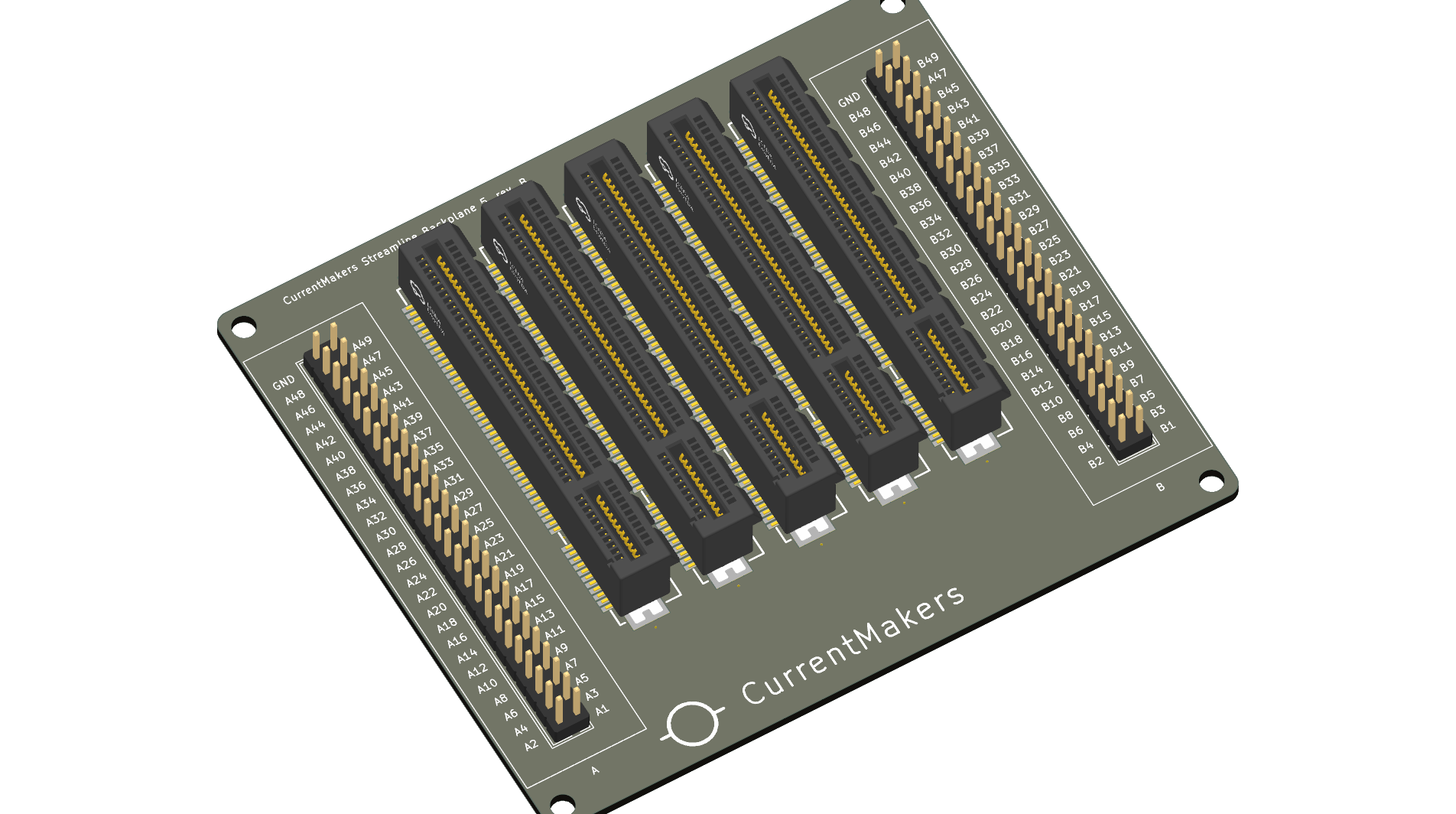

Streamline Backplane 5
5-slot backplane for Streamline blades.
Streamline Backplane 5
Total:$25.00
Product Images
1 / 3
Overview
The Streamline Backplane 5 is a parallel bus for the Streamline blades. The end connectors allows for access to the bus lines for extensions, measurements or troubleshooting.
Key Features
- ✓Small form factor, ideal for education, prototyping and experimentation.
- ✓5-slot passive backplane.
- ✓Rigid PCIe connectors for mechanical and electrical connections.
- ✓Two 50-pin headers for extensions, measurements and troubleshooting
Technical Specifications
Bus width
98 pins
Connector type
PCIexpress, 4 lanes
End connectors
Headers, 50 pins, 2.54mm pitch
Size
100 x 86 mm
Weight (grams)
62
